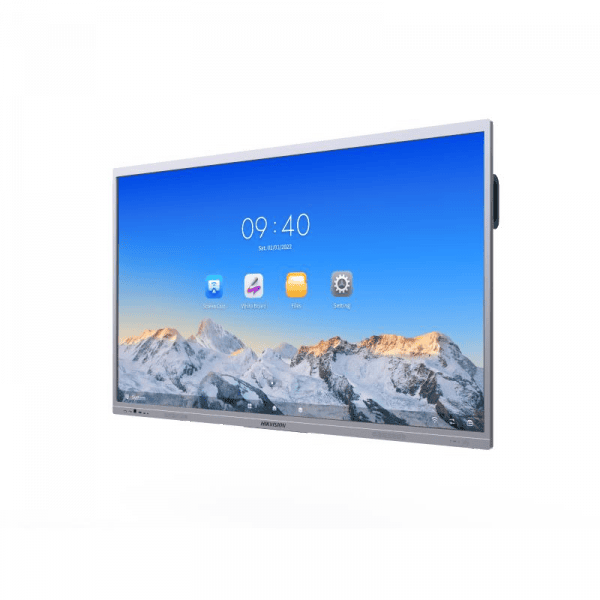

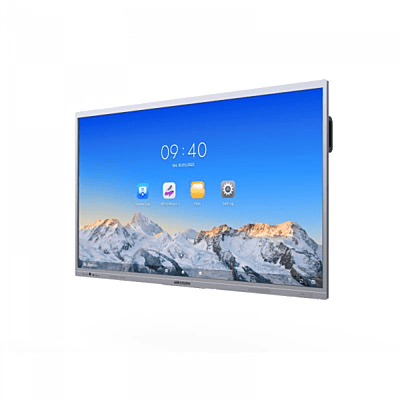

Hikvision DS-D5CRB/A | Interactive Display (no camera)
Tags:
Hikvision interactive displays are designed to empower businesses and educational institutions. These
innovative displays combine stunning visuals with advanced features to create a truly immersive user
experience.
●Captivate Your Audience: Experience crystal-clear visuals with the Ultra-HD 4K display, featuring
a resolution of 3840 x 2160. Presentations and video conferences become more engaging and
interactive thanks to the sharp image quality.
●Seamless Interaction: The anti-glare and anti-blocking design ensures a smooth touch
experience, with up to 45 touch points for precise writing and control.
●Enhanced Flexibility: Choose from a dual system of Android or Windows (optional) to fit your
needs. Video conferencing software is recommended for the Windows system.
●Streamlined Efficiency: The built-in network switch chip eliminates the need for a separate
switch, saving on costs and simplifying setup.
●Peace of Mind Design: The all-in-one design with tempered glass and intelligent temperature
control ensures a safe and environmentally friendly solution. Plus, blue light protection helps
reduce eye strain.
EDLA Certified
EDLA stands for Enterprise Device License Agreement, a Google program that offers cutting-edge security features for Android devices that can be utilised in any environment. A smart, connected and secure solution for your interactive panel. With EDLA, you can access various features, including fast computing performance, extensive app availability, data encryption and device management tools that ensure maximum security.
Hikvision interactive displays from Dynamiccom are the perfect choice for:
●Modern Businesses: Improve collaboration, presentations, and video conferencing.
●Educational Institutions: Foster a dynamic learning environment that engages students.
Invest in an immersive experience and unlock the potential of your business or school with Hikvision
interactive displays with Dynamiccom.
65inch PDF
75inch PDF
86inch PDF
- Select Size
- Quantity
![Hikvision DS-D5CRB/A | Interactive Display (no camera) Hikvision DS-D5CRB/A | Interactive Display (no camera)](/product-images/600x600+-22-.png/1123586000017145007/600x600)
![Hikvision DS-D5CRB/A | Interactive Display (no camera) Hikvision DS-D5CRB/A | Interactive Display (no camera)](/product-images/600x600+-22-.png/1123586000017145007/200x200)
![Hikvision DS-D5CRB/A | Interactive Display (no camera) Hikvision DS-D5CRB/A | Interactive Display (no camera)](/product-images/600x600+-21-.png/1123586000017145009/200x200)
![Hikvision DS-D5CRB/A | Interactive Display (no camera) Hikvision DS-D5CRB/A | Interactive Display (no camera)](/product-images/600x600+-20-.png/1123586000017145011/200x200)
Product Details
- Panel
- Glass Thickness3.2mm
- Glass Bonding Method Zero Lamination
- Display
- Backlight DLED
- Pixel Pitch0.1645(H)× 0.4935(V)mm
- Resolution3840 × 2160 @60 Hz
- Brightness400 cd/m² with Brightness sensor
- Color Depth10bit
- Contrast Ratio5000 : 1
- Response Time6 ms
- Color Gamut72% NTSC
- Refresh Rate60 Hz
- Viewing Angle178°(H)/178°(V)
- Optical
- Aspect Ratio16 : 9
- Built-In System
- Operation SystemAndroid 12.0
- ProcessorQuad-core Cortex-A76 × 4(2.4 GHz)and quad-core Cortex-A55 × 4(1.8 GHz)
- Memory8 GB
- Built-In Storage128 GB
- Panel TypeVA
- HDCP Version2.0
- Touch Resolution32768 x 32768
- Touch
- TypeInfrared Touch Screen
- Touch Point45 point multi-touch
- Touch Response Time< 8 ms
- Touch Precision± 1 mm (≥ 90% touching area)
- Processing Performance
- Display Color1.07G
- Internal Function
- LoudspeakerBuilt-in 2 ×15 W+25 W loudspeaker;
- BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging;support shadow correction and distortion correction for lens.
- Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
- Interface
- Video & Audio InputHDMI In (HDMI 2.0)× 3, VGA In × 1, DP In (DP 1.2)× 1, Audio In × 1
- Video & Audio OutputHDMI Out (HDMI 2.0)× 1, Audio Out × 1, SPDIF Out ×1
- Control InterfaceTOUCH-USB 3.0 × 3, RS232 × 1
- Network Interface
LAN (1000 Mbps) × 2
WIFI AP&Station,2.4 G/5 G
IEEE 802.11 a/b/g/n/ac 2×2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
- Power
- Standby Consumption≤ 0.5 W
- Max. Consumption< 375W
- Working Environment
- Working Temperature0 °C to 40 °C (32 °F to 104°F)
- Working Humidity10%~90% RH
- General
- VESA800 mm × 600 mm (4 × M8-25 mm)
- Power Supply100 to 240 VAC, 50/60 Hz
- AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control.
- NFCSupport screen mirroring by Android phones.
In addition, the Hikvision interactive displays come equipped with a touch-responsive screen, which allows users to easily navigate and control the display. This feature is especially useful for educators and trainers who need to highlight specific details during their presentations.
These displays also have a built-in whiteboard feature, allowing users to draw and write directly on the screen. This is a great feature for brainstorming sessions, collaborative projects, and interactive classroom activities.
Moreover, the Hikvision interactive displays from Dynamiccom are compatible with a wide range of devices, including laptops, tablets, and smartphones. This allows users to easily share their content with others during meetings and presentations.
Overall, the Hikvision interactive displays from Dynamiccom are a must-have for any business or educational institution that values productivity, collaboration, and innovation.
Product Model
Product Model DS-D5CRB/A
