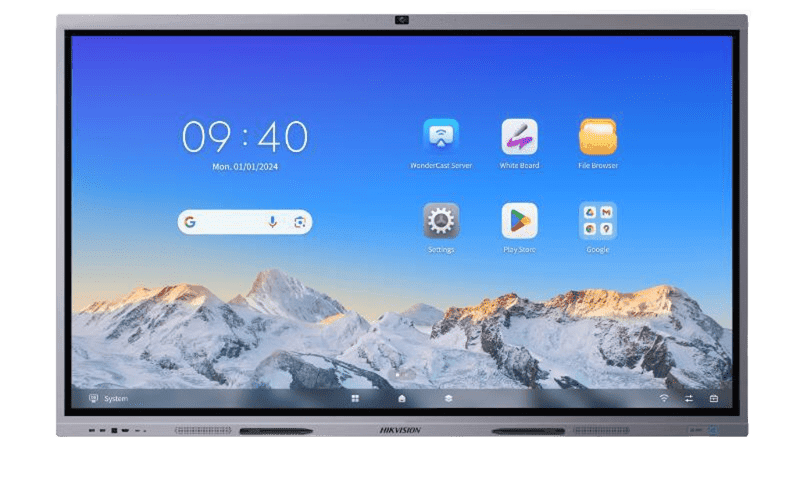

Hikvision DS-D5CRB/B | Interactive Display with tracking camera
Tags:
Empower your business or school with Hikvision interactive displays, designed for the modern age. Their sleek aesthetic and feature-rich design create an immersive experience, perfect for presentations, video conferencing, and interactive learning.
Key Features:
●Stunning Clarity: Witness exceptional image quality with a UHD 4K resolution of 3840 × 2160 pixels. Your presentations and video conferences will come alive with vibrant detail.
●Seamless Interaction: Enjoy a smooth and responsive touch experience with 45-point multi-touch control. The anti-glare and anti-blocking design minimizes distractions for effortless
interaction.
●Dual OS Advantage (Optional): Choose between Android and Windows for cost-effective operation. We recommend video conferencing software on the Windows system for optimal performance.
●Streamlined Setup: The built-in network switch chip eliminates the need for an additional switch, simplifying your setup process.
●Eco-Friendly Design: The all-in-one design utilizes tempered glass and intelligent temperature control, promoting environmental responsibility and safety.
●Eye Care Technology: Built-in blue light protection ensures comfortable viewing sessions, enhancing user productivity and well-being.
EDLA Certified
EDLA stands for Enterprise Device License Agreement, a Google program that offers cutting-edge security features for Android devices that can be utilised in any environment. A smart, connected and secure solution for your interactive panel. With EDLA, you can access various features, including fast computing performance, extensive app availability, data encryption and device management tools that ensure maximum security.
Dynamiccom's Hikvision interactive displays deliver a powerful combination of stunning visuals, intuitive interaction, and user comfort. This creates the perfect environment for immersive learning and productive collaboration.
65inch PDF
75inch PDF
86inch PDF
- Select Size
- Quantity
Product Details
- Panel
- Glass Thickness3.2mm
- Glass Bonding MethodZero Lamination
- Display
- BacklightDLED
- Pixel Pitch0.1645（H）× 0.4935（V）mm
- Resolution3840 × 2160 @60 Hz
- Brightness400 cd/m² with Brightness sensor
- Color Depth10bit
- Contrast Ratio5000 : 1
- Response Time6 ms
- Color Gamut72% NTSC
- Refresh Rate60 Hz
- Viewing Angle178°(H)/178°(V)
- Optical
- Aspect Ratio16 : 9
- Built-In System
- Operation SystemAndroid 12.0
- ProcessorQuad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
- Memory8 GB
- Built-In Storage128 GB
- Panel TypeVA
- HDCP Version2.0
- Touch Resolution32768 x 32768
- Touch
- TypeInfrared Touch Screen
- Touch Point45 point multi-touch
- Touch Response Time＜ 8 ms
- Touch Precision± 1 mm (≥ 90% touching area)
- Processing Performance
- Display Color1.07G
- Internal Function
- LoudspeakerBuilt-in 2 ×15 W+25 W loudspeaker;
- BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
- Image Processing TechnologySupport 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging；support shadow correction and distortion correction for lens.
- Audio Processing TechnologySupport dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection.
- Interface
- Video & Audio InputHDMI In （HDMI 2.0）× 3, VGA In × 1, DP In （DP 1.2）× 1, Audio In × 1
- Video & Audio OutputHDMI Out （HDMI 2.0）× 1, Audio Out × 1, SPDIF Out ×1
- Control InterfaceTOUCH-USB 3.0 × 3, RS232 × 1
- Network Interface
LAN (1000 Mbps) × 2
WIFI AP&Station，2.4 G/5 G
IEEE 802.11 a/b/g/n/ac 2×2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP
- Data Transmission InterfaceUSB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W)
- Power
- Standby Consumption≤ 0.5 W
- Max. Consumption< 375W
- Working Environment
- Working Temperature0 °C to 40 °C (32 °F to 104°F)
- Working Humidity10%~90% RH
- General
- VESA800 mm × 600 mm （4 × M8-25 mm）
- Power Supply100 to 240 VAC, 50/60 Hz
- AccessoryWall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3M HDMI cable (2.0), 1.5m power cable (European standard), Bluetooth remote control.
- NFCSupport screen mirroring by Android phones.
- Camera
- Pixel8 MP (48MP for photos)
- Camera FunctionSupport intelligent switching between Android system, OPS, and PC.
- Field Angle120°(diagonal), 110°(horizontal), 75°(vertical)
- Distortion≤2.5%
- Camera Resolution RatioUp to 4K
- Microphone
- SpecificationOmni-directional 8-array layout
- Mic FunctionEcho reduction and smart noise-cancellation
- Voice Distance12 m
- Sampling Rate32 K
- Mic Sampling Rate16 bit
In addition, the Hikvision interactive displays come equipped with a touch-responsive screen, which allows users to easily navigate and control the display. This feature is especially useful for educators and trainers who need to highlight specific details during their presentations.
These displays also have a built-in whiteboard feature, allowing users to draw and write directly on the screen. This is a great feature for brainstorming sessions, collaborative projects, and interactive classroom activities.
Moreover, the Hikvision interactive displays from Dynamiccom are compatible with a wide range of devices, including laptops, tablets, and smartphones. This allows users to easily share their content with others during meetings and presentations.
Overall, the Hikvision interactive displays from Dynamiccom are a must-have for any business or educational institution that values productivity, collaboration, and innovation.
Product Model
Product ModelDS-D5CRB/B
