Hikvision DS-D6022FN-B | Distributor
R5,100.00
Tags:

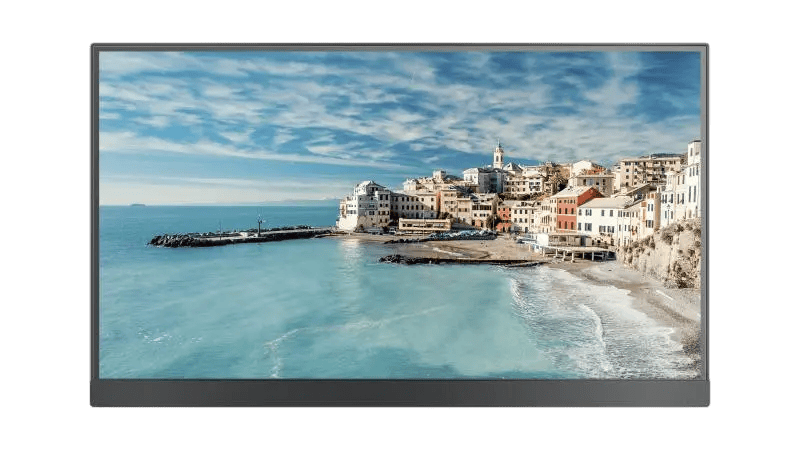

Hikvision DS-D6022FN-B | 22-inch Digital Signage from Dynamiccom.
- Plastic shell appearance, slim frame, and all-in-one design.
- Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
- Variable materials, static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
- Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
- Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
- Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
- Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.
Quantity
Product Details
- Display
- Viewing Angle178°(H)/178°(V)
- Contrast Ratio3000:1
- Screen Size21.5 inch
- Active Display Area478.656 mm（H） × 260.28 mm （V）
- BacklightELED
- Pixel Pitch0.24795 (H) mm × 0.24795 (V) mm
- Resolution1920 × 1080@60 Hz
- Brightness250 cd/m²
- Color Depth8 bit, 16.7 M
- Response Time6.5 ms
- Color Gamut72% NTSC
- Reliability7 × 24 h
- Refresh Rate60 Hz
- Built-In System
- Operation SystemAndroid 8.1.0
- CPUCortex-A17, 4-core, main frequency 1.6 GHZ
- Memory2 GB
- Built-In Storage16 GB
- Interface
- Video & Audio InputAUDIO IN × 1
- Video & Audio OutputAUDIO OUT × 1
- Network InterfaceLAN × 1, Wi-Fi
- Data Transmission InterfaceUSB 2.0 × 2, TF Card × 1, BT4.0 × 2, Wi-Fi
- Power
- Standby Consumption≤ 10 W
- Input Voltage100 to 240 VAC, 50/60 ± 3 Hz
- Power Consumption≤ 40 W
- Working Environment
- Working Temperature0 ℃ to 40 ℃ (32 °F to 104 °F)
- Working Humidity20% to 90% RH
- Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
- Storage Humidity5% to 90% RH
- General
- Material Type
DAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1,
MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX,
OTA, IMY, JPG, JPEG, BMP, GIF, PNG
- Mounting TypeWall-Mounted
- Product Dimensions (W × H × D)
516.75 (W) × 320.03 (H) × 46.55 (D) mm (without wall-mounted backboard) (20.34'' × 12.60'' × 1.83'')
516.75 (W) × 320.03 (H) × 53.55 (D) mm (with wall-mounted backboard) (20.34'' × 12.60'' × 2.11'')
- Package Dimensions (W × H × D)593 (W) × 434 (H) × 157 (D) mm (23.35'' × 17.09'' × 6.18'')
- Net Weight3.03 Kg (6.68 lb)
- Gross Weight4.63 Kg (10.21 lb)
- Packing ListWall-mounted backboard × 1, screws M3 × 6, power cord × 1, remote control × 1, battery × 2, screw package × 1
- Internal Function
- Loudspeaker2 × built-in speaker, 8 Ω 5 W
